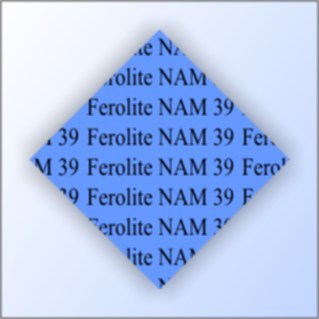

About Cellulose Fibre Ferolite NAM 39
Ferolite NAM 39
Category: Non Asbestos Gasket Jointing Sheets
Applications: Water/Oil resistant gasket material for light to medium loading. Suitable for low operating pressure, e.g. transformers, compressors and also used for easily deformable components with low surface pressure like valve covers and pans in internal combustion engines.
|
Material Composition
(Type of fibres)
|
Cellulose Fibre,
Mineral Fibre & Organic Fibre.
|
|
Binders
|
NBR
|
|
OPERATING CONDITION :
|
|
|
Max.Peak Temp
|
250 degree C
|
|
Max. Continuous Temp
|
180 degree C
|
|
Max.Continuous Temp.with steam
|
120 degree C
|
|
Max. Operating Pressure
|
50 Kg/cm2
|
Efficient Sealing PerformanceFerolite NAM 39 excels in providing reliable, leak-proof sealing for both oil and water mediums, thanks to its robust pressure resistance and optimal thickness range. Its flat gasket shape ensures precision fit, making it an ideal component in demanding industrial environments.
Wide Availability and DistributionWith an extensive dealer and distributor network across India, Ferolite NAM 39 is easily sourced from local wholesalers, suppliers, and exporters. Businesses benefit from stable supply and responsive support, facilitating smooth integration into industrial operations.
FAQs of Ferolite NAM 39:
Q: How is Ferolite NAM 39 installed in an oil or water system?
A: Ferolite NAM 39 flat gaskets are installed by placing them between the flanged surfaces that need to be sealed. Ensure both surfaces are clean and aligned before the gasket is positioned and tightened to the recommended torque for effective sealing.
Q: What are the benefits of using Ferolite NAM 39 gaskets?
A: Ferolite NAM 39 offers high pressure resistance (up to 50 Kg/cm), performs reliably at temperatures up to 120C, and provides excellent sealing for oil and water mediums. Its durability helps prevent leaks and reduces maintenance frequency.
Q: When should I choose a thickness between 3mm and 6mm for this gasket?
A: Select the gasket thickness based on your applications flange gap, operating pressure, and temperature. Thicker gaskets provide better compensation for flange surface irregularities, while thinner variants are preferred for tighter assemblies.
Q: Where can Ferolite NAM 39 be sourced in India?
A: Ferolite NAM 39 is available through a broad network of dealers, distributors, exporters, suppliers, traders, and wholesalers throughout India, ensuring easy accessibility for industrial requirements.
Q: What is the recommended working process for installing these gaskets?
A: The recommended process involves cleaning the flange surfaces, checking for damage, placing the flat gasket precisely, and tightening bolts in a crisscross pattern. Regular checks post-installation help maintain optimal performance.
Q: How does the size variation (1500x1500mm or 1500x4500mm) impact usage?
A: Different sizes allow customization for specific applications. The 1500x1500mm sheets suit smaller connections, while larger 1500x4500mm sheets can be cut to fit bigger or irregular surfaces, providing flexibility in industrial settings.
